Carry the material balance through preparation
The flow sheet starts with accepted fruit, then accounts for peel, seeds, trim and screening residue before calculating the puree available downstream. When blending is included, water and other ingredients enter the balance at their actual addition points. The filling quantity is based on the resulting product, not the original whole-fruit rate.
A production schedule adds the time dimension: batch delivery of fruit, preparation speed, pulper operation, thermal startup, filling cycles and cleaning stops. The limiting sustained stage determines the useful line output. Nameplate figures from separate machines cannot simply be added or treated as equivalent.
Lay out work, product flow and maintenance access together
The open preparation area needs space beside the inspection conveyor for people, usable-flesh collection and removal of peel and seeds. This space continues through the pulper feed and reject outlets. Drainage and cleaning access should remain usable when the line is in its normal arrangement.

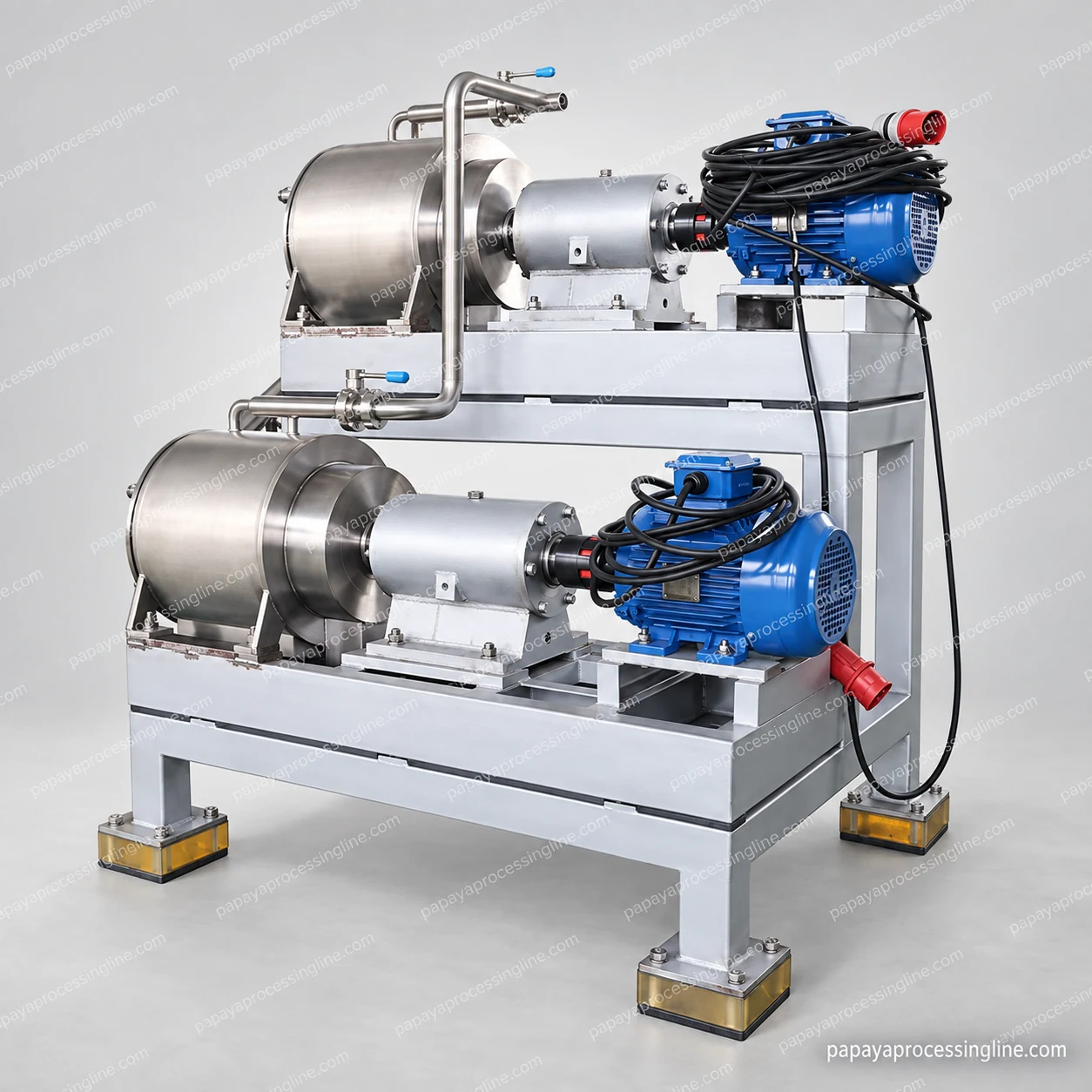

The pulper-finisher needs access to its screens, drives and chamber covers. Tanks need room around outlets and service connections; the thermal section needs access to valves and instruments; the filler needs bag and container-handling space. A layout that fits only the machine footprints omits much of the operating area.
Tie utilities to the selected equipment duty
Utility consumption is calculated for the selected duty and operating schedule. A general equipment category does not establish a site-wide steam, water or electricity requirement.
| Connection | Engineering purpose |
|---|---|
| Electrical supply | Coordinate motor loads, controls, protection and site supply with the selected equipment. |
| Water and drainage | Separate fruit washing, cleaning supply, product-related water and effluent paths as applicable. |
| Heating and cooling services | Match the selected thermal duty and CIP heating arrangement, including supply and return conditions. |
| Compressed air or other service media | Identify only the services required by the selected valves, instruments and filler configuration. |
| Product and CIP connections | Define connection positions, pipe routes, drainability and cleaning returns across the equipment boundaries. |
Define how the line responds to a stop
The feed tank, transfer pump, thermal unit and filler exchange operating conditions. Level limits, downstream readiness and the selected process conditions determine whether product can advance. The control description defines these relationships rather than assuming every machine can run continuously on its own.
Startup, bag changes, loss of feed, an out-of-condition event and cleaning each require a defined sequence. Where a return or diversion route is needed, its destination and effect on product handling are explicit. The selected control and valve arrangement must support that sequence before the line is commissioned.
Turn the scope into inspectable engineering documents
A useful engineering package brings the process flow, equipment schedule and layout into agreement. It identifies who supplies each connection, the intended material state at every handover, and the services required at the installation. Details such as a preparation table, an existing pump or a packaging conveyor remain visible in that boundary.
The acceptance plan then links each function to a suitable check. Mechanical operation, water circulation, product performance and validation of the preservation process are different forms of evidence. The agreed documentation and commissioning scope should preserve that distinction.
